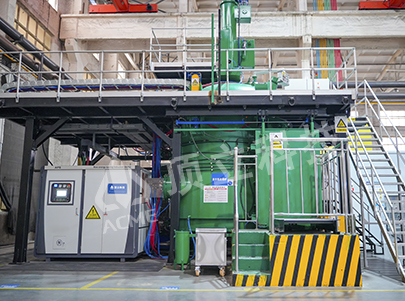

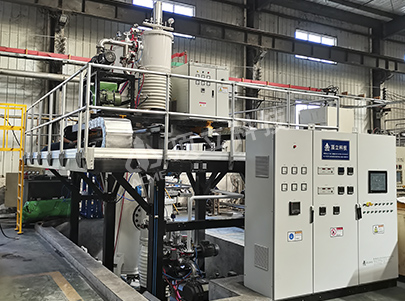

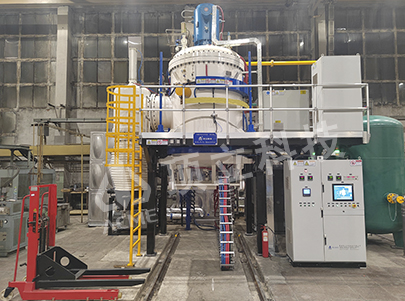

Vacuum Induction Melting Furnace (VIM)

Vacuum induction melting furnace is a furnace that adopts the metallurgical process of melting and forming ordinary steel, special steel, high temperature alloy, precision alloy, non-ferrous metal, permanent magnet rare earth material, industrial silicon and other materials under vacuum or protective atmosphere with using the principle of an alternating electromagnetic field to obtain an eddy current of heat in the material being processed.

INQUIRY

Technical Features
Related optional configuration

Vacuum Induction Melting Furnace (VIM)

Specification/Model	VIM-500	VIM-600	VIM-1000	VIM-2000	VIM-4000	VIM-8000
Max. loading weight (kg)	500	600	1000	2000	4000	8000
Max. Temperature (°C)	1800	1800	1800	1800	1800	1800
Ultimate vacuum (Pa)	6.7×10⁻¹	6.7×10⁻¹	6.7×10⁻¹	6.7×10⁻¹	6.7×10⁻¹	6.7×10⁻¹
The data shown in the table may vary depending on the production process, this is a detailed specification and not standard data. It all depends on the technical specifications and requirements for the production process.

Purpose
Vacuum induction melting furnace is a furnace that adopts the metallurgical process of melting and forming ordinary steel, special steel, high temperature alloy, precision alloy, non-ferrous metal, permanent magnet rare earth material, industrial silicon and other materials under vacuum or protective atmosphere with using the principle of an alternating electromagnetic field to obtain an eddy current of heat in the material being processed.

Purpose

Vacuum induction melting furnace is a furnace that adopts the metallurgical process of melting and forming ordinary steel, special steel, high temperature alloy, precision alloy, non-ferrous metal, permanent magnet rare earth material, industrial silicon and other materials under vacuum or protective atmosphere using the principle alternating electromagnetic field to obtain an eddy current of heat in the material being processed.

It is possible to add material to the furnace, measure the temperature, take a sample, melt, cast, cool and unload ingots under the condition of a non-destructive vacuum. It has the function of refining and mixing, which can achieve the homogenization of alloy composition, etc. This is an advanced and efficient modern metallurgical equipment.
