A Technical Overview to Know About Vacuum Brazing Furnaces

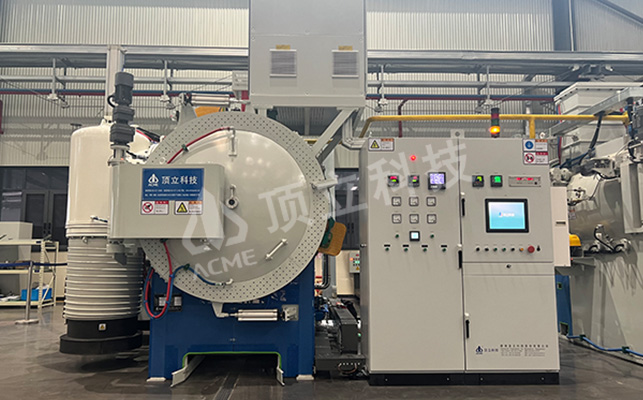

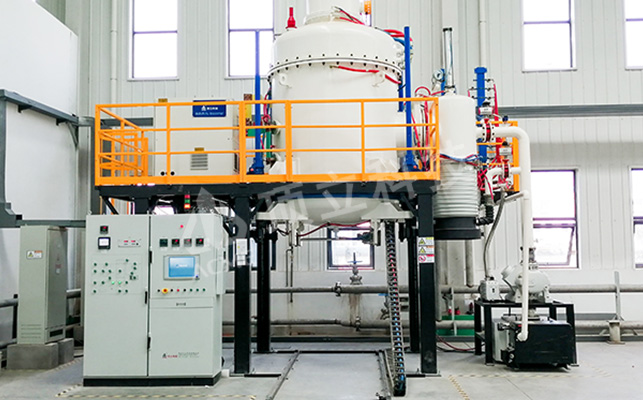

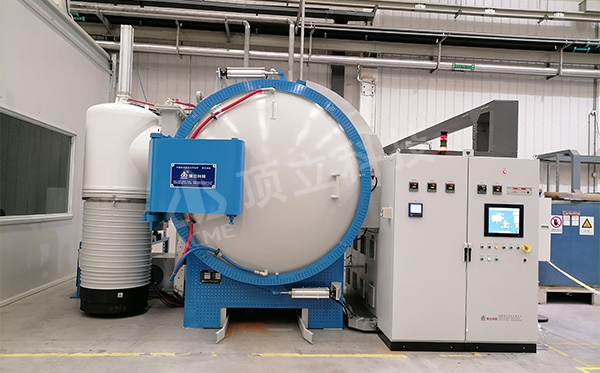

A vacuum brazing furnaceis specialized equipment designed for brazing and heat treating metals and ceramics under high-vacuum conditions. It is suitable for processing materials such as stainless steel, titanium alloys, high-temperature alloys, and cemented carbides, and is equally suited for both small-scale laboratory prototyping and large-scale industrial production. By isolating oxygen through vacuuming, the equipment eliminates oxidation contamination at the source. With a temperature control range spanning from room temperature to 1600°C, it can beequippedwith inert gas-assisted processes. Compared to conventional fusion welding, thisprocessprovides a cleaner welding environment and higher precision in thefinalproducts. The entire process operates fully automatically, utilizing vacuum, precise temperature control, and flux wetting and diffusion to achieve thebonding: After the workpiece is pre-loaded with low-melting-point flux and sealed in the furnace, the vacuum system removes moisture and air to create an oxygen-free environment; multi-zone simultaneous heating ensures uniform temperature rise, and precise temperature maintenance allows the filler metal to melt completely; the molten filler metal fills the gaps via capillary action and diffuses into the base material to form a dense metallurgical jointpoint;after welding, gradual cooling reduces internal stresses in the workpiece, eliminating the need for grinding or cleaning upon removal from the furnace.
Compared to traditional welding processes, vacuum brazing furnaces offer significant advantages. The vacuum environment removes oxidation layers from the workpiece surface, resulting in welds that are free of porosity and slag, with excellent sealing and corrosion resistance, which greatly extends the service life of the workpiece. This process is suitable for brazing dissimilar materials such as titanium alloys, high-temperature alloys, and ceramics-to-metal, with minimal deformation during the processing of complex, thin-walled, and grooved parts. The entire process can be programmed and stored, ensuring consistent welding quality for batch production and a high degree of automation. The process requires no chemical flux, eliminating the need for cleaning steps, which is both environmentally friendly and energy-efficient. Additionally, it allows for simultaneous completion of heat treatments such as annealing and degreasing, thereby simplifying the production workflow. The furnace’s high-temperature-resistant components experience minimal wear, and the equipment is simple to operate and maintain, making it suitable for long-term continuous production.
The equipment serves a wide range of high-end manufacturing sectors: in aerospace, it is used for brazing high-temperature alloy engine components, honeycomb structures, and heat exchange components; in the new energy industry, it processes water-cooled plates for power batteries, IGBT heat exchanger, and automotive air conditioning heat exchange components, balancing sealing, heat dissipation, and lightweight design; in the semiconductor and electronics sectors, it enables ceramic-to-metal hermetic packaging of power devices; In the medical device sector, they are used for brazing titanium alloy implants and precision medical components, ensuring a clean, impurity-free finish that meets medical standards; they are also used for processing diamond cutting tools, cemented carbide tools, heat exchange components for the nuclear industry, and stainless steel heat exchangers for home appliances.
With the rapid development of the aviation, new energy, and semiconductor industries, the demand for precision and high reliability in components continues to rise. Vacuum brazing furnaces, with their clean, efficient, and versatile welding capabilities, have become indispensable key equipment in precision manufacturing, continuously helping various industries improve product quality and enhance efficiency.
