VD 3
Limit pressure: ≤ 120 and ≤ 150 mbar

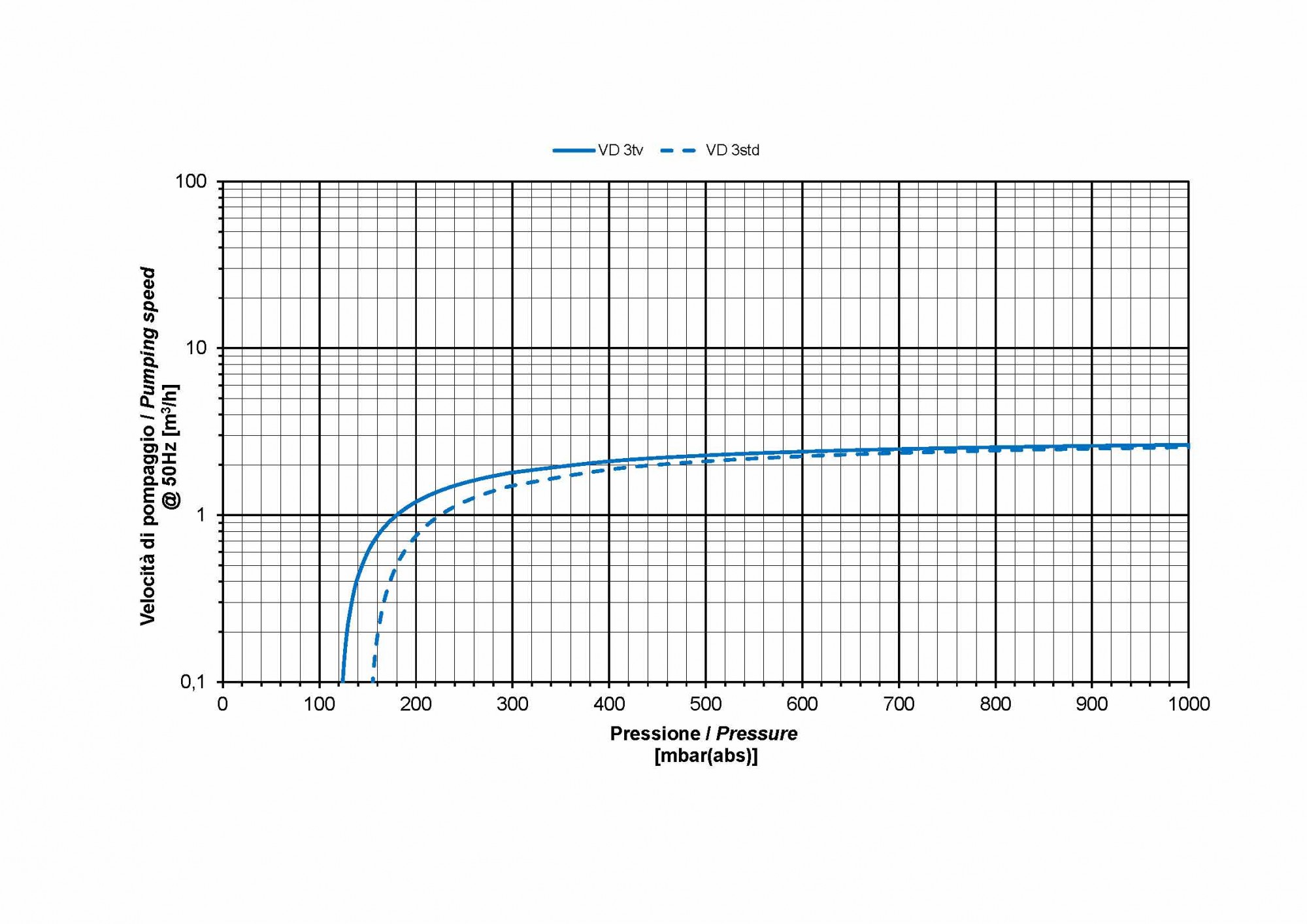

Pumping speed: 3 ÷ 3.6 m3 / h
The VD 3 series pumps are single-stage dry vane type rotary pumps.
The pump is keyed directly on the electric motor.
The VD 3 series pumps are suitable for the evacuation of closed systems or to operate at a constant vacuum included in the following range:
VD 3 from 150 to 1013 mbar (absolute)
VD 3 from 120 to 1013 mbar (absolute) version with vacuum seal valve
The following accessories are available that are useful for installation and for controlling the operating parameters of the pump:
External suction filter
Vacuum gauges / vacuum switches
Manometers / pressure switches
VD 3 | ||||
Pumping speed | m³/h | 50Hz | 3 | |
60Hz | 3,6 | |||
Pressione finale (ass.) | mbar | ≤ 150 (≤ 120 Versione tenuta di vuoto) | ||
Motor power | kW | 50Hz | 0,12 | |
60Hz | 0,15 | |||
Number of laps | rpm | 50Hz | 3000 | |
60Hz | 3600 | |||
Dimensioni | L x B x H | mm | 201x108x124 | |
Weight | kg | 4,9 | ||
Connections * | Inlet | 1/8” Gas | ||
Outlet | 1/8” Gas | |||
* Other types of connection available on request
