VD16/VD25/VD40Dry Rotary Vane Pump
The pumps series VD 16, VD 25 and VD 40 are single-stage pumps of the dry rotary vane type.
- Details
VD16/VD25/VD40
Limit pressure:≤ 150 mbar
Pumping speed:16 ÷ 48 m3 / h
The pumps series VD 16, VD 25 and VD 40 are single-stage pumps of the dry rotary vane type.
The pump is keyed directly on the electric motor.
The VD 16, VD 25 and VD 40 series pumps are suitable for the evacuation of closed systems or to operate at a constant vacuum included in the following range:
VD 16 - VD 25 - VD 40 from 150 to 900 mbar (absolute)
The following accessories are available that are useful for installation and for controlling the operating parameters of the pump:
External suction filter
Vacuum gauges / vacuum switches
Manometers / pressure switches
VD 16 | VD 25 | VD 40 | ||||

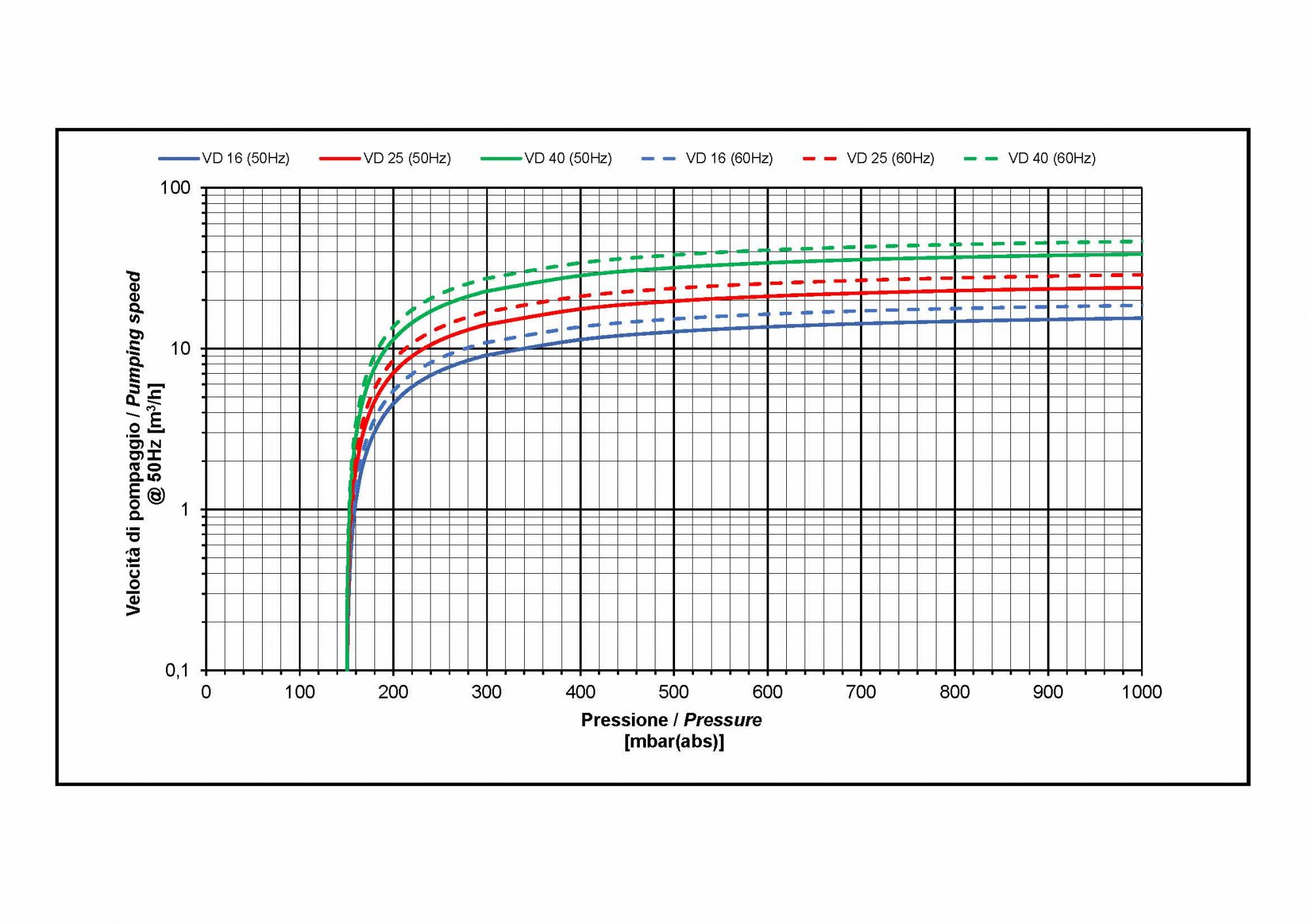

Pumping speed | m³/h | 50Hz | 16 | 25 | 40 | |
60Hz | 19 | 30 | 48 | |||
Final pressure (abs.) | mbar | ≤ 150 | ≤ 150 | ≤ 150 | ||
Motor power 3 ~ | kW | 50Hz | 0,55 | 0,75 | 1,25 | |
60Hz | 0.70 | 0,90 | 1,50 | |||
Motor power 1 ~ | kW | 50Hz | 0,55 | 0,75 | / | |
60Hz | 0,70 | 0,90 | / | |||
Number of laps | rpm | 50Hz | 1500 | 1500 | 1500 | |
60Hz | 1800 | 1800 | 1800 | |||
Dimensions | L x B x H | mm | 457x238x228 | 525x256x258 | 579x256x258 | |
Weight | kg | 25 | 33 | 36 | ||
Connections | Inlet | 1/2” Gas | 3/4” Gas | 3/4” Gas | ||
Outlet | 1/2” Gas | 3/4” Gas | 3/4” Gas | |||
