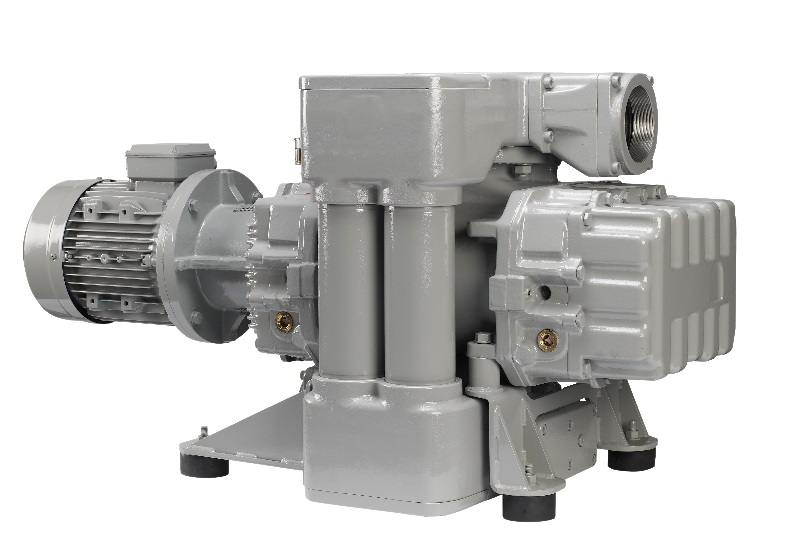

GV series vacuum pump set

GV series vacuum pump set

The GV vacuum systems are designed for those customers who need to couple vane vacuum pumps to Roots pumps.

Inquiry
  • Details

GV

Ultimate pressure:≤ 7 x 10-3 mbar

Pumping speed:500÷4700 m3/h


The GV vacuum systems are designed for those customers who need to couple vane vacuum pumps to Roots pumps.


This solution allows to obtain a greater capacity with a higher maximum pressure (up to 7 x 10-3 mbar) in a relatively small space.


The technical features of the system can be customized according to customer needs. PVR can develop vacuum systems choosing among the different pump technologies of its production with ad hoc solutions.


The following accessories are useful for installation and for controlling the operating parameters of the pump:

  • External suction filter

  • Condensate separators

  • Inverter

  • High performance lubricants






GV 11.3

S300

GV 11.4

S300

GV 12.5 S300GV 12.6 S300

Pumping speed

m³/h

50Hz

500

750

1000

1400

60Hz

600

900

1200

1700

Ultimate pressure with gas ballast (abs.)*

mbar


≤ 7 x 10-3

≤ 7 x 10-3

≤ 7 x 10-3

≤ 7 x 10-3

Sound pressure level

dB(A)

50Hz

74

74

74

74

60Hz

76

76

76

76

Dimensions

L x B x H

mm

50Hz

1030x750

x1086

1140x750

x1086

1141x750

x1126

1273x750

x1126

Weight

kg

50Hz

430

460

515

580

60Hz

440

475

530

595

Connections**

Inlet


DN100

DN100

DN100

DN150

Outlet


2” Gas

2” Gas

2” Gas

2” Gas

*In combination with our EU H series pumps

**Other types of connection available upon request






GV 13.f7

S650

GV 13.8

S650

GV 14.9 S650

Pumping speed

m³/h

50Hz

2000

2900

3900

60Hz

2400

3450

4700

Ultimate pressure with gas ballast (abs.)*

mbar


≤ 7 x 10-3

≤ 7 x 10-3

≤ 7 x 10-3

Sound pressure level

dB(A)

50Hz

78

78

79

60Hz

80

80

80

Dimensions

L x B x H

mm

50Hz

1575x1050

x1467

1619x1050

x1467

1628x1050

x1566

Weight

kg

50Hz

1130

1350

1290

60Hz

1170

1390

1330

Connections**

Inlet


DN150

DN150

DN200

Outlet


3” Gas

3” Gas

3” Gas

*In combination with our EU H series pumps

**Other types of connection available upon request
