PHV5K / PHV10K / PHV20K / PHV30K Dual stage oil lubricated rotary vane pumps

The PHV 5 K, PHV 10 K, PHV 20 K, PHV 30 K series pumps are of the two-stage rotary vane type, oil bath lubricated.

Inquiry

Details

PHV5K / PHV10K / PHV20K / PHV30K

Limit pressure: ≤ 1 x 10-3 mbar

Pumping speed: 5 ÷ 36 m3 / h

The PHV 5 K, PHV 10 K, PHV 20 K, PHV 30 K series pumps are of the two-stage rotary vane type, oil bath lubricated.

The flanged electric motor is coupled by means of an elastic coupling.

Cooling is achieved by forced air through a centrifugal fan.

An integrated check valve prevents the oil from rising and the air from returning to the chamber to be emptied during the stop phase.

The separation of oil mists from the exhaust air takes place in the TMF separator filter (optional). The abated oil is recovered by the pump by precipitation. This occurs when the machine is stopped or during its operation with maximum vacuum or with closed suction.

An adjustable Gast ballast prevents condensation inside the pump when small quantities of steam are sucked.

The PHV 5 K, PHV 10 K, PHV 20 K, PHV 30 K series pumps can only suck air and small quantities of water vapor and are suitable for evacuating closed systems or for operating at a constant vacuum up to 1 x 10-3 mbar (absolute)

ACCESSORIES

The following accessories are available that are useful for installation and for controlling the operating parameters of the pump:

External suction filter
TMF external exhaust filter

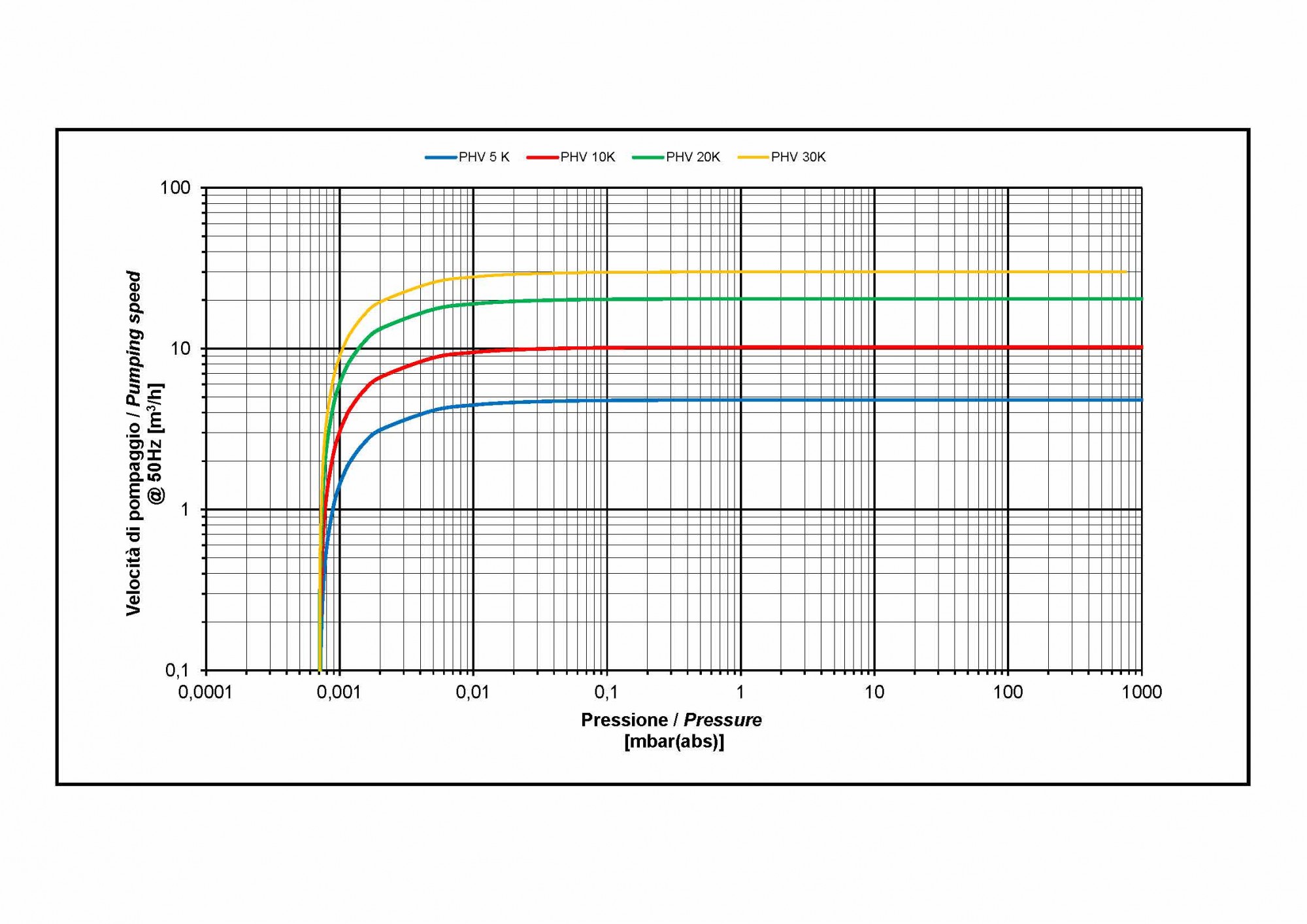

				PHV 5 K	PHV 10 K	PHV 20 K	PHV 30 K
Velocità di pompaggio		m³/h	50Hz	5	10	20	30
			60Hz	6	12	24	36
Pressione finale GB chiuso (abs)		mbar		≤ 1 x 10-3	≤ 1 x 10-3	≤ 1 x 10-3	≤ 1 x 10-3
Potenza motore		kW	50Hz	0,4	0,4	0,75	0,75
			60Hz
Numero di giri		rpm	50Hz	1450	1450	1450	1450
			60Hz	1750	1750	1750	1750
Pressione massima vapore H2O ammissibile		mbar		53	53	53	53
Quantità vapore H2O ammissibile		kg/h		0,2	0,39	0,79	1,18
Carica lubrificante		l		1,1	1,2	2	2,3
Livello di pressione acustica		dB(A)	50Hz	50	50	52	52
			60Hz
Dimensioni	L x B x H	mm	50Hz	454x170x253	479x170x253	543x210x288	576x210x288
			60Hz
Peso		kg	50Hz	21	22,5	38	41
			60Hz
Connessioni		Inlet		25 KF	25 KF	25 KF	25 KF
