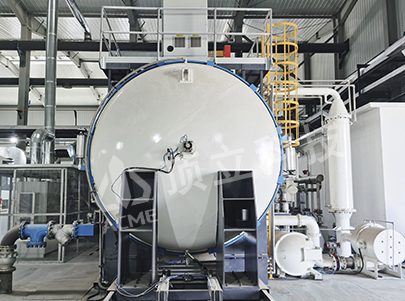

Batch Type Purification Furnace

Batch Type Purification Furnace

Furnace is used for purify treatment of graphite powder, graphite part, insulation materials and etc.

INQUIRY
  • Technical Features
  • Related optional configuration

Description
Furnace is used for purify treatment of graphite powder, graphite part, insulation materials and etc.

Application: Graphite part, graphite powder, carbon nano-tube, graphene and etc.

Specifications of Batch Type Purification Furnace

ModelSpec

Working Zone Size

(D × H ) (mm)

Max. Temperature (°C)Section Temperature Uniformity (°C)Ultimate Vacuum (Pa)Pressure Increase Rate (Pa/h)
HPF-050511500×500×11002200-3000±±5/±151-1000.67
HPF-060609600×600×9002200-3000±5/±201-1000.67
HPF-1010151000×1000×15002200-3000±5/±201-1000.67
HPF-1313201300×1300×20002200-3000±5/±201-1000.67

VPF-0305φ300×5002200-3000±5/±201-1000.67
VPF-0708φ700×8002200-3000±5/±201-1000.67
VPF-1120φ1100×20002200-3000±5/±201-1000.67
VPF-1520φ1500×20002200-3000±5/±201-1000.67
The above parameters can be adjusted to the process requirements, they are not as acceptance standard, the detail spec. will be stated in the technical proposal and agreements.

Technical Features

1.It combined high temperature and chemical purification method;

2.Using unique ACME super high temperature and high current power supply technology, it can long term stable use at 2600℃;

3.Using multiple temperature control zones, great temperature uniformity;

4.Using special designed high temperature pyro-meter measuring technoloy with precision temperature control and small deviation;

5.Using induction heating, the max. temperature can reach upto 3000℃,But it can only be purified by high temperature method, and it is difficult to use chemical method.


Optional Configuration of Batch Type Purification Furnace

1.Furnace door: screw/hydraulic/manual elevation type; manual tight/ auto lock-ring tight

2.Furnace vessel: all carbon steel/inner layer stainless steel/all stainless steel

3.Furnace hot zone: soft carbon felt/soft graphite felt/hard composite felt/CFC

4.Heating element and muffle: isostatic press graphite/high purity, strength and density graphite/fine size graphite

5.Process gas system: volume/mass flow-meter; manual valve/auto valve;

6.Thermocouple: C type/S type/R type/B type

7.Pyro-meter: Dual-color/Single color; CHINO/Raytek
